Technical specification
Design standard: ASME B16.34, API 608, API 6D
Fire safe: API 607, ISO 10497
Face to face dimension: ASME B16.10
Flanged ends: ASME B16.5, ASME B16.47
BW ends: ASME B16.25
Test & inspection: API 598, API 6D
Technical specification
Design standard: ASME B16.34, API 608, API 6D
Fire safe: API 607, ISO 10497
Face to face dimension: ASME B16.10
Flanged ends: ASME B16.5, ASME B16.47
BW ends: ASME B16.25
Test & inspection: API 598, API 6D
Application
Petroleum Industry, Natural Gas Industry, Fertilizer Industry, Pharmaceutical Industry, Power Industry, Chemical Industry.

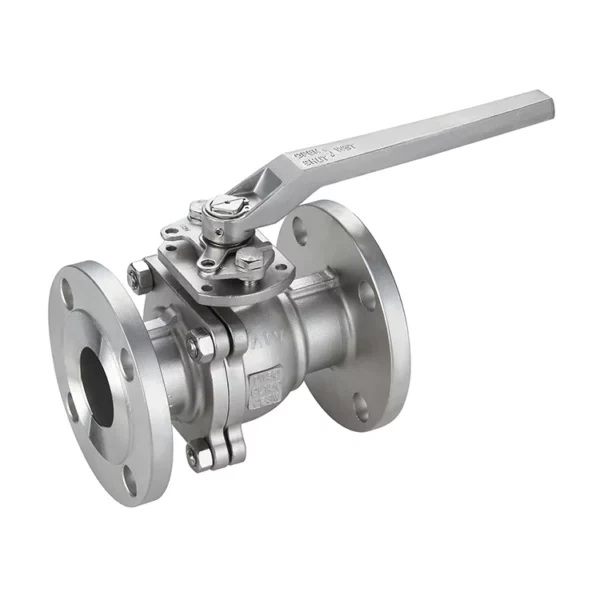

| FLOATING BALL VALVE | Size | 1/2”-12” FB&RB |
| Pressure rating | Class 150-600 | |
| Main material | WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L, F321, F51 | |
| Optional operation | Manual, gear, electric, pneumatic, hydraulic | |
| TRUNNION BALL VALVE | Size | 2”-40” FB&RB |
| Pressure rating | Class 150-1500 | |
| Main material | WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L, F321, F51 | |
| Optional operation | Manual, gear, electric, pneumatic, hydraulic | |
| FULLY WELDED BALL VALVE | Size | 2”-40” FB&RB |
| Pressure rating | Class 150-1500 | |
| Main material | A105, LF2, F304, F316, F304L, F316L, F321, F51 | |
| Optional operation | Manual, gear, electric, pneumatic, hydraulic |
