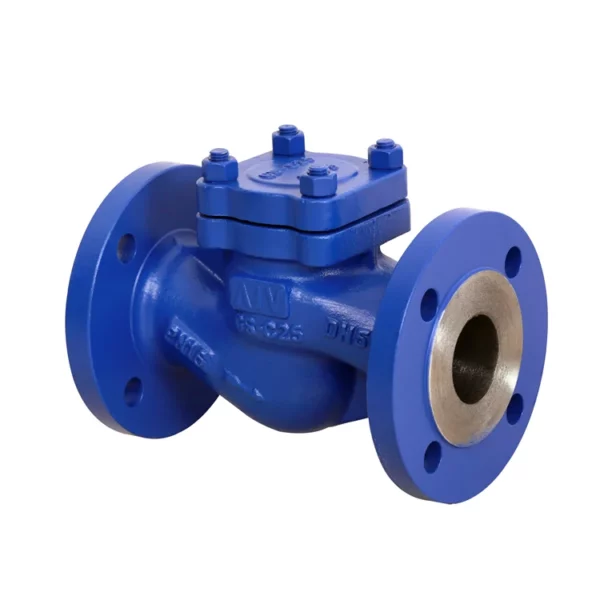

DIN Lift Check Valve

DIN Lift Check Valve

Category:

Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230

Details

Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230

Application
Hot oil system, steam system, hot and cold water system etc.

Advantage
1. DIN lift check valve is self-sealing valve. The disc can be acted by the flow which can avoid against the media flow back.
2. The disc with spring can keep the valve work in any direction.
3. Reasonable structure, reliable sealing, excellent performance and attractive appearance.

Part name Material
Body GS-C25、1.4301、1.4408
Seat 1.4301、Stellite
Disc 1.4021、1.4301+Stellite
Spring 1.4301、1.4401
Copper guide sleeve Copper alloy、D2、BL2
Gasket Stainless steel + Flexible graphite
Cover GS-C25、1.4301、1.4408
Nut ASTM 194-2H、A194-8
Double-headed bolt ASTM 193-B7、A193-B8
