Technical specification
Design standard: ASME B16.34, API 602, BS 5352, ISO 15761
Face to face dimension: As per manufacturer’s standard
Ends: ASME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11
Test & inspection: API 598, ISO 5208
Technical specification
Design standard: ASME B16.34, API 602, BS 5352, ISO 15761
Face to face dimension: As per manufacturer’s standard
Ends: ASME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11
Test & inspection: API 598, ISO 5208
Application
Petroleum Industry, Natural Gas Industry, Fertilizer Industry, Pharmaceutical Industry, Power Industry, Chemical Industry.
Main part materials

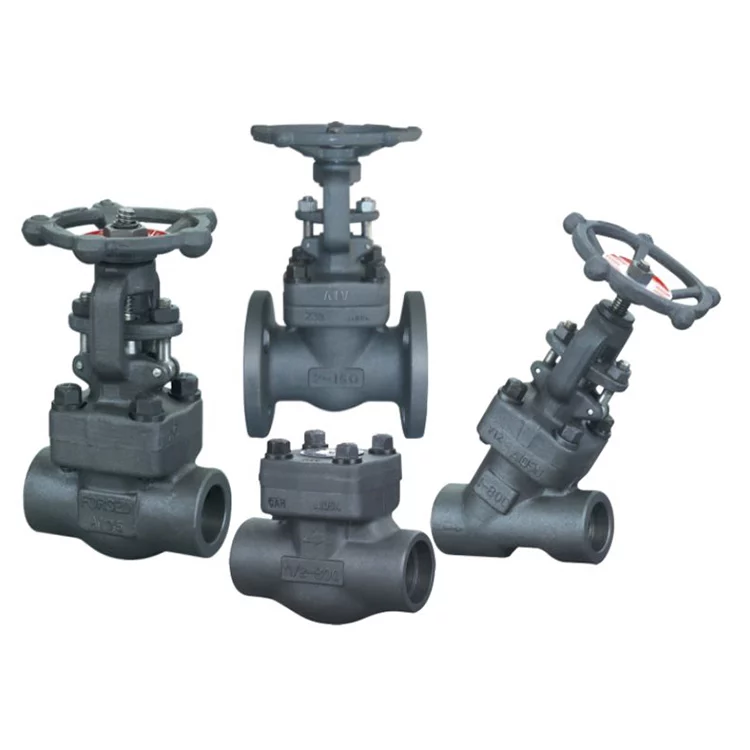

FORGED GATE GLOBE CHECK VALVE | Size | 1/2”-2” |
Pressure rating | Class 150-1500 | |
Main material | A105, LF2, F11, F22, F304, F316 | |
Optional operation | Manual |
