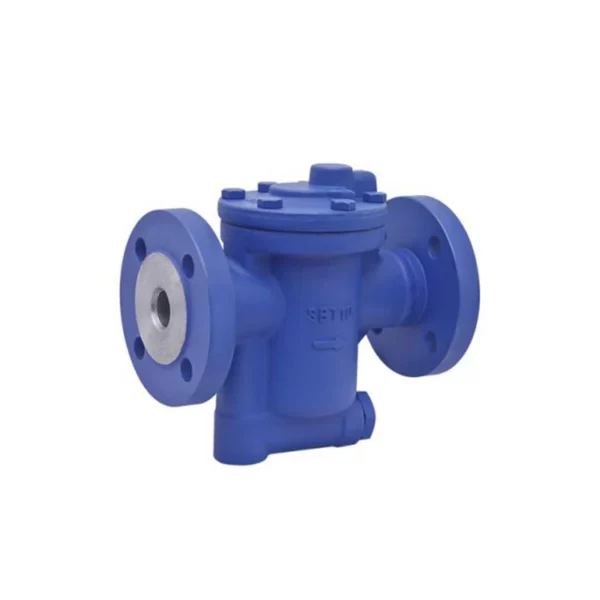

SBT10 Inverted Bucket Steam Trap

SBT10 Inverted Bucket Steam Trap

Technical specification

•GB/T12250-2005 “Steam Trap Terminology Marking Structure Length”

•GB/T22654-2008 “Technical Conditions for Steam Traps”

•GB/T12251-2005 “Test Method for Steam Traps”

•ISO 6948 Automatic steam traps production and performance characteristic tests

Details

Technical specification

•GB/T12250-2005 “Steam Trap Terminology Marking Structure Length”

•GB/T22654-2008 “Technical Conditions for Steam Traps”

•GB/T12251-2005 “Test Method for Steam Traps”

•ISO 6948 Automatic steam traps production and performance characteristic tests



Application

Hot oil system, steam system, hot and cold water system etc.



Advantage

1.The valve body and valve cover are all made of forged steel/cast steel.

2.Internal parts are all made of stainless steel and added with anti-wear allowance,extend trap life.

3.U-shaped flow channel design, to achieve water sealing effect, no leakage of steam.

4.Reliable flexible closure system with patented technology, no steam leakage.

5.Install anti-shock device, so that the fluid entering the valve body does not produce water hammer phenomenon.

6. Built-in check valve, suitable for superheated steam environment.

7.Built-in filter allows the trap to work in a clean environment.

8.Select different displacement curves according to the pressure difference to increase the displacement.

9.The back pressure rate is as high as 90% or more.

10.After the steam is stopped, the condensed water can be removed by opening the screw plug to prevent damage to the trap due to low temperature freezing.

Main part materials

Cap A105/F304/F316
Valve Body WCB/CF8/CF8M
Seat Stainless Steel
Disc Stainless Steel
Other Internals Stainless Steel

Main part size

Type Conn DN PN Diameter (mm) U.W

Kg

L H H1 W
SBT 10T Thread 15-25 25 130 185 38 100 4
SBT 10W SW 15-25 25 130 185 38 100 4
SBT 10F RF 15-25 25 190 185 38 100 6.5
