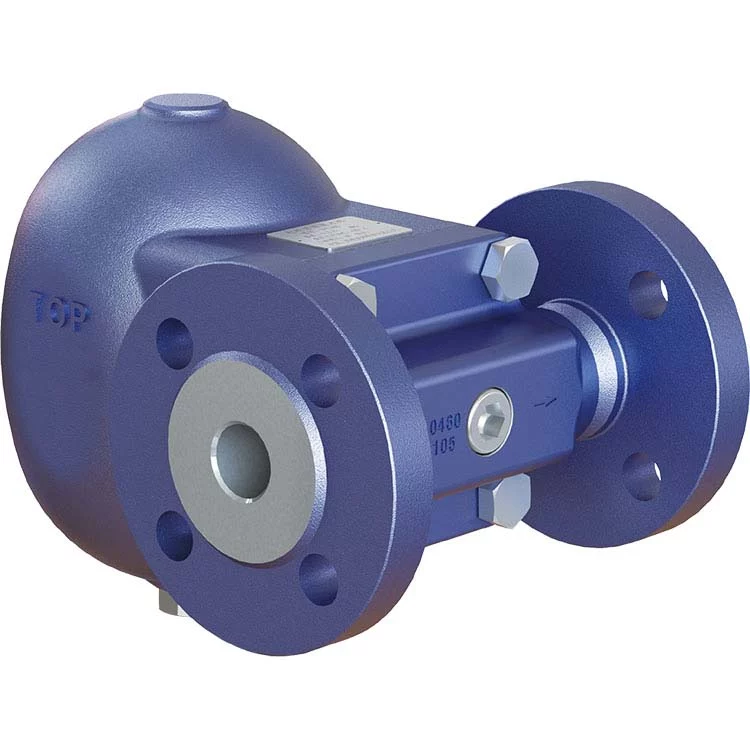

Technical specification
•GB/T12250-2005 “Steam Trap Terminology Marking Structure Length”
•GB/T22654-2008 “Technical Conditions for Steam Traps”
•GB/T12251-2005 “Test Method for Steam Traps”
•ISO 6948 Automatic steam traps production and performance characteristic tests
Technical specification
•GB/T12250-2005 “Steam Trap Terminology Marking Structure Length”
•GB/T22654-2008 “Technical Conditions for Steam Traps”
•GB/T12251-2005 “Test Method for Steam Traps”
•ISO 6948 Automatic steam traps production and performance characteristic tests
Application
Hot oil system, steam system, hot and cold water system etc.
Advantage
1.The valve body and bonnet are made of cast steel/forged steel.
2.All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts, which improves the service life of the trap.
3.Special flow channel design to achieve zero water hammer.
4.Patented flexible closing system and micron-level precision closing system double guarantee no steam leakage and long service life.
5.Built-in air exhaust valve to prevent air lock.
6.The independent filter makes the trap work in a clean environment.
7.Choose different displacement curves according to the pressure.
8.The back pressure rate is as high as 95%
9.The drain plug is designed at the bottom of the trap to ensure that the internal water is removed after stopping, to prevented floating ball from freezing in cold weather.
Main part materials
| Cap | A105/F304/F316 |
| Valve Body | WCB/CF8/CF8M |
| Seat | Stainless Steel |
| Disc | Stainless Steel |
| Other Internals | Stainless Steel |
Main part size
| Type | Conn | DN | PN | Diameter (mm) | U.W
Kg |
|||
| L | H | H1 | W | |||||
| SFT 10T | Thread | 15-25 | 25 | 150 | 120 | 60 | 170 | 5.5 |
| SFT 10W | SW | 15-25 | 25 | 150 | 120 | 60 | 170 | 5.5 |
| SFT 10F | RF | 15-25 | 25 | 210 | 120 | 60 | 170 | 8 |
Flow rate
