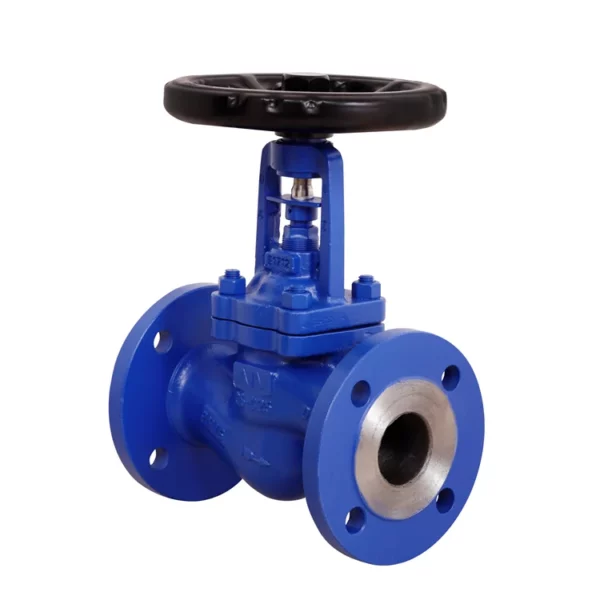

WJ41H DIN Bellow Globe Valve

WJ41H DIN Bellow Globe Valve

Technical Specification
Design standard: EN12516,GB/T12224
Face to face: EN558, GB/T12221
Connection standard: EN1092,GB/T9124.1,HG/T20592
Test andinspection:EN12266,GB/T26480

Application
Steam, hot and cold water, thermal oil, biphenyl, fatty acids, liquid ammonia, ammonia, natural gas etc.

Details

Technical Specification
Design standard: EN12516,GB/T12224
Face to face: EN558, GB/T12221
Connection standard: EN1092,GB/T9124.1,HG/T20592
Test and inspection:EN12266,GB/T26480

Application
Steam, hot and cold water, thermal oil, biphenyl, fatty acids, liquid ammonia, ammonia, natural gas etc.

Advantage
1.The new structure valve body adopts German coated sand casting technology.lt greatlyimproving the surface smoothness and mechanical performance, reducing pores, sand holes and cracks.
2.When in close position, the conical sealing surface with a scraping effect can automatically remove surface impurities. ensure reliable sealing and longer service life of the valve disc. Conical disc can achieve larger sealing strength in same close pressure,it’s easier to close and providing bettersealing performance.
3.The sealing design combining bellows and packing, static sealing and dynamic sealing, fully meets the zero leakage requirements.Reduce leakage by the wear out of traditional packing,which meetsinternational and domestic sealing standards.
4.Bellows with 100% helium testing, valves with 100% strength and seal testing according to standards to ensure zero leakage of the product.
5.Products above DN150 with triangle position device, valve can installed in various angles and effectively reduce valve shaking. It provides protection and noise reduction. Especially when installed at the outlet of the thermal oil pump or on high speed steam pipelines, reduce internal damage caused by shaking can effectivelyincrease the service life by more than twice.
6.Various valve disc designs can be provided according to the working conditions and media requirements, such as throttling valve disc, flat soft seal valve disc, globe check valve disc etc.

NAME MATERIAL
Body GS-C25,1.0619,CF8,CF8M,CF3M
Seat 13Cr,SS304,SS316,STL
Disc 13Cr,A105+13Cr,F304+STL、F316+STL
Pin SS304,SS316
Bellow SS304,SS316L
Stem 20Cr13,F304,F316
Gasket GRAPHITE+SS,PTFE
Bonnet GS-C25,1.0619,CF8,CF8M,CF3M
Nut ASTM A194-2H,A194-8
Bolt ASTMA193-B7,A193-B8
Packing GRAPHITE,PTFE
Gland 25,WCB,SS304,CF8
Locator 25,WCB,SS304,CF8
Stem Nut BRASS,45,D2
Handwheel CS, KTH330
Cap A105



Test Specification
PN
Test Strength 1.5xPr Mpa
Seat Seal 1.1xPr
Gas Seal 0.6
Bellow Seal 1.5xPr
Temperature -196℃~600℃
Note: Pr is the pressure rating of the material at room temperature, unit: MPa.
