Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230
Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230
Application
Hot oil system, steam system, hot and cold water system etc.
Advantage

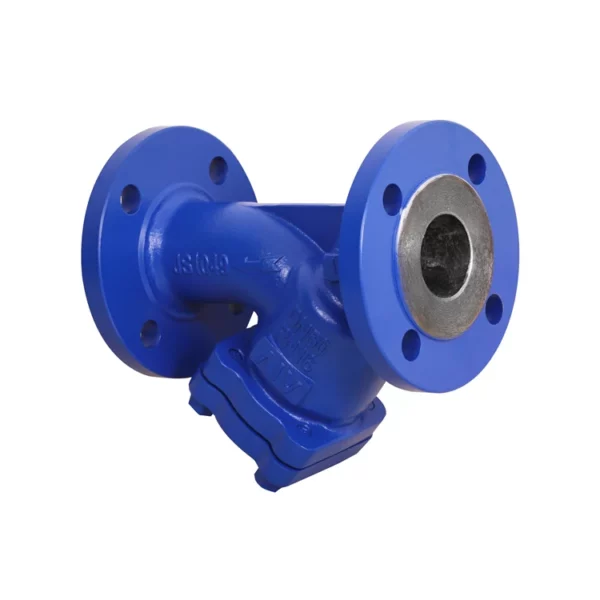

1. DIN Y type strainer is used to separated the impurity of media. It can protect other equipment for a regular service.
2. Stainless steel filter traps make a better performance and corrosion-resistance.
3. Maintenance is easy. All you need is just to clean the filter traps.
| Part name | Material |
| Body | GS-C25、1.4301、1.4408 |
| Filter net | 1.4301、1.4401 |
| Gasket | Stainless steel + Flexible graphite |
| Bonnet | GS-C25、1.4301、1.4408 |
| Nut | ASTM 194-2H、A194-8 |
| Double-headed bolt | ASTM 193-B7、A193-B8 |
