Chlorine-specific globe valves are valves specially designed to handle chlorine conditions. They play a crucial role in many industries involving the use of chlorine, such as chemical and pharmaceutical industries.
Bellows-type chlorine globe valves play an important role in industrial applications, especially in the chemical industry, where their superior sealing and corrosion resistance are highly valued. The design of this valve not only improves the safety and reliability of the equipment but also significantly reduces maintenance costs and extends service life.

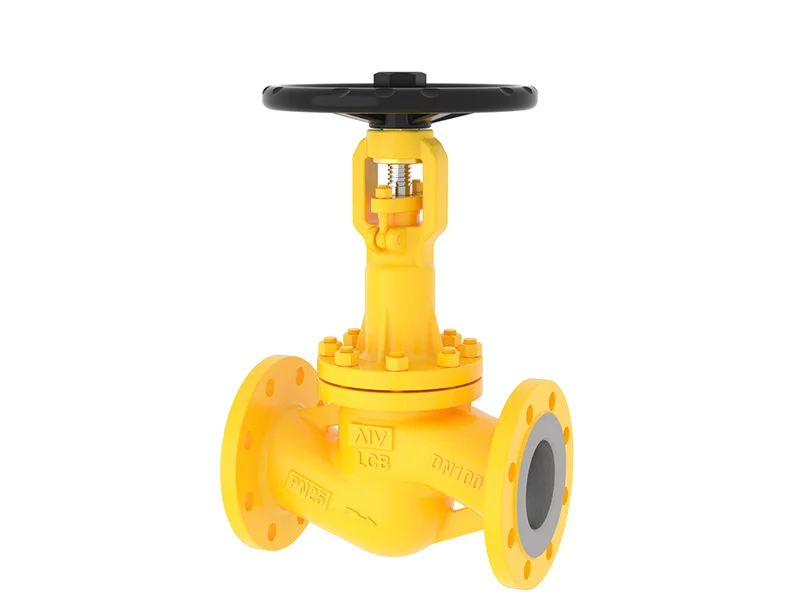

Design Features of Bellows-type Chlorine Globe Valves
- The valve cover uses an innovative separated design, allowing for more flexible and diverse material selection, easily coping with various complex working environments. This design not only enhances the adaptability of the valve cover but also provides users with more material options.
- The extended neck of the valve cover ensures that the bellows are completely enclosed within the valve cover space, effectively preventing fluid erosion and significantly reducing the bellows’ expansion and contraction, thereby greatly enhancing fatigue resistance.
- The automatic insulated rolling welding forming process welds the bellows seat, valve stem, and packing box perfectly into a single unit, forming a solid metal sealing barrier, ensuring absolutely zero leakage of the valve stem and greatly improving valve sealing performance.
- The unique upper and lower dual-stem design: the lower stem has excellent corrosion resistance, suitable for harsh environments, while the upper stem features high strength and friction resistance, ensuring stability and reliability in high-frequency operating conditions.
- The packing box adopts a multi-layer PTFE V-shaped composite packing design, forming a second seal above the bellows, greatly enhancing sealing reliability.
- The unique casting process, combined with corrosion-resistant alloy applications, effectively prevents chlorine ion corrosion, shell perforation, and sand holes, improving the overall durability and corrosion resistance of the valve.
- The central flange uses a tongue-and-groove sealing structure design, ensuring reliable sealing even under pipeline pressure fluctuations and maintaining system stability.
- The sealing fit between the valve disc and valve seat adopts various types such as conical and flat types, providing stable sealing performance without adhesion or wear, ensuring long service life and maintaining excellent sealing even after prolonged operation.
- Large-diameter valves are specially equipped with anti-vibration structures, effectively reducing noise and protecting the sealing surface, improving the working environment quality and valve stability. The main component materials are suitable for chlorine gas, liquid chlorine, phosgene, silicon tetrachloride, methane hydrides, and other hydrogen-ion-related chemicals, offering high chemical corrosion resistance.
Advantages of Bellows Chlorine Globe Valves
Firstly, due to its flexible material selection and innovative structural design, the bellows chlorine globe valve is able to maintain stable performance under extreme conditions. Whether it is high temperature, high pressure, or highly corrosive media, it can respond effectively.
Secondly, the automatic insulated roll-welding forming process and multiple sealing design ensure zero leakage of the valve, preventing the release of harmful media that could pose threats to the environment and personnel safety.
Thirdly, the unique casting process and the use of corrosion-resistant alloys further enhance the valve’s durability and corrosion resistance, greatly extending its service life.
Finally, in practical operation, the installation and maintenance of the bellows chlorine globe valve are very simple. Its modular design and standardized interfaces make installation and replacement faster and more convenient. At the same time, the valve’s high reliability reduces the need for frequent maintenance, improving production efficiency.
User feedback indicates that the valve performs excellently under various working conditions, and its outstanding performance and stable quality have been widely recognized and trusted. If you are looking for a high-quality chlorine globe valve, please feel free to contact us. AIV is always at your service.
